Joysticks

MEGATRON Elektronik Joysticks

Product Detail

Finger Joystick Series SpaceMouse® Module

Intuitive control of complex 3D movement with one hand only

  • Intuitive control of complex 3D movements (6 DOF, degrees of freedom)
  • Optimized industrial version
  • Optoelectronic sensor: contact-less and linear
  • UART (serial) or USB interface

Data sheet SpaceMouse® Module

Finger Joystick TRY100

Almost all application needs combined in one joystick series thanks to the extensive selection of handles, limiters and output options

  • Variety of handle shapes
  • Good cost/performance ratio
  • Installation depth from 26 mm
  • 1 to 3 axes
  • Optional redundant Hall sensors
  • Optional with digital interfaces (CANopen, CAN J1939, USB)

Data sheet TRY100

Finger Joystick TRY120

Robust finger joystick for use in demanding mobile applications

  • Rugged finger joystick ideal for mobile vehicle applications
  • Easy to service due to plug connection
  • With Hall sensors, optionally redundant
  • Also with digital interfaces (CAN J1939, CANopen, USB)
  • Shallow installation depth < 26 mm

Data sheet TRY120

Finger Joystick Series 844

Very robust joystick in variety designs with minimal installation depth - the miniature heavy-duty joystick

  • Very robust joystick
  • Exceptional electromagnetic compatibility (EMC)
  • Small installation depth of < 20 mm
  • Wide selection of configurations/handles
  • Reliability through redundant Hall sensors (optional)
  • Contact-less, wear-free Hall effect technology

Data sheet 844

Miniature Joystick Series 812

Ideally customizable miniature joystick with Hall sensors or potentiometers in various designs

  • Wide selection of handles
  • 1 to 3 axes
  • Spring tension customizable for axis 1 and 2
  • Optional Hall Effect or potentiometer sensors
  • Small installation depth < 26 mm

Data sheet 812

Switchstick Series 851

Functional switch stick for one- or two-dimensional control

  • Stable stainless steel shaft
  • Small installation depth < 24 mm
  • Spring return to center position
  • IP class 65 (above panel)
  • Good cost/performance ratio

Data sheet 851

Finger Joystick Series 847

Modern look and feel with soft-touch surface and redundant sensor technology

  • Reliability through redundant Hall sensors
  • Protection IP67
  • Handle details in 5 colours
  • Mounting depth 5.8 mm

Data sheet 847

Switchstick Series 841

Rugged switchstick for 1 to 2 axes with high quality switches for various switching scenarios

  • Particular robust switchstick
  • Single step or progressive switching
  • Switching up to 1 A with gilded contacts
  • Center detect switch optional
  • Protection up to IP65 (above panel)
  • High lifespan
  • Large selection of handles, also with push buttons

Data sheet 841

Finger Joystick TRY22

Industrial joystick for three axes of the highest quality in terms of mechanics, materials and workmanship

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Contact-less, wear-free Hall Effect technology
  • Redundant outputs available
  • Protection available up to IP65 (above panel)

Data sheet TRY22

Miniature Switchstick Series 821

Very compact, premium switchstick for 1 to 3 axes and up to 6 micro switches

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Protection of IP54 above panel (only X and Y axis)
  • Smallest dimensions with highest life-time
  • Small handle deflection
  • With up to 6 micro switches

Data sheet 821

Miniature Joystick Series 828

Very compact premium finger joystick for 1 to 3 axes for safe operating feeling and convincing haptic

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Protection up to IP54 (above panel)
  • Smallest dimensions with highest life-time
  • Small handle deflection
  • Integrated conductive plastic potentiometer sensors

Data sheet 828

Finger Joystick Series 826

Premium finger joystick with highly customizable sensor technology

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Conductive plastic potentiometers mounted outside of the housing
  • Various configurations possible for switches, detent positions, etc.
  • X and Y axis can be configured differently
  • Friction clutch for one axis, spring return for the other axis possible
  • Protection up to IP65 (above panel)

Data sheet 826

Finger Joystick Series 829

Joystick of the highest quality with 1 axis for controlling one-dimensional parameters

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Optional Hall Effect or potentiometer sensors
  • Diverse configuration options for micro switches, detent positions, etc.

Data sheet 829

Finger Joystick Series 830

Unique joystick family for custom solutions with screwed shaft and handle

  • Flexible, modular design
  • With conductive plastic type potentiometers
  • Inherently immune to RMI/RFI
  • Friction clutch for one axis, spring return for the other axis possible
  • Customer-specific handle shapes and rubber boots, Micro switches for detection of center position on request

Data sheet 830

Thumb Joystick TRY20

The smallest 3-axis joystick on the market thanks to the rotatable knob

  • 3 axes due to rotatable knob (2-axis version optional)
  • Particularly low height above the panel (21 mm without seal, 28 mm with seal)
  • Outstanding quality of mechanics and sensors for many years of reliable operation
  • Contactless, wear-free Hall sensor technology for consistent signal quality over the entire service life
  • Redundant output signals optionally possible for particularly safety-critical applications

Data sheet TRY20

Thumb Joystick PW30

Rocker: Stand-alone or integrated device

  • 1 axis rocker
  • Potentiometer or Hall sensors
  • Spring return
  • Ergonomic handle design

Data sheet PW30

Thumbwheel TRY13

One of our smallest joysticks with Hall sensors

  • 1 axis
  • Ergonomic thumbwheel
  • With spring return
  • Sensitive response to user operation

Data sheet TRY13

Thumb Joystick TRY13m

Miniature 1-axis joystick - the little brother of TRY13

  • 1-axis Miniature Joystick
  • Hall-Effect Sensor
  • Easy Snap-In Mounting
  • Thumb Wheel in several colors available

Data sheet TRY13m

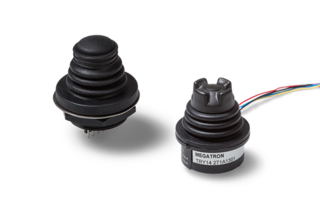

Thumb Joystick TRY14

Miniature joystick with modern Hall technology

  • Contactless Hall sensors
  • Waterproof, IP class 68 (1 metre) / IP69K
  • Optionally available with dual output, or redundant with separate supply lines

Data sheet TRY14

Hand Joystick Series 871

Particularly high-quality, medium-sized hand joystick with a cobra knob

  • Ergonomic Cobra handle providing space for individual components placement
  • Customized version with up to 5 axes possible
  • Robust construction ideally suited for heavy-duty applications
  • Expected life of more than 5 million operations without change in feel
  • Small installation depth of <49 mm for space-saving integration into panels and driver's cabs
  • Separate wiring of switches other input elements for safe operation

Data sheet 871

Hand Joystick Series 870

Highest quality hand joystick with compact installation dimensions

  • Particularly high quality hand joystick with stock grip handle
  • Robust design, predestined for heavy duty applications
  • Lifespan of over 5 million movements for long-term reliable operation
  • Small installation depth of <49 mm for space-saving installation in control panels and driver's cab
  • Optionally with button, rocker switch or z axis to control additional functions
  • 12-pin connector for easy installation in series production (optionally also with cable outlet)
  • Protection class up to IP65

Data sheet 870

Hand Joystick Series 891

Large, multifunctional heavy-duty hand joystick of the highest quality with cobra knob

  • Ergonomic cobra-shaped handle for ergonomic control of complex machines
  • Equipped with conductive plastic potentiometers or Hall sensors (both also available as redundant versions) as the ideal solution for your electronics
  • Outstanding quality of mechanics and sensors for long-term, reliable operation
  • Various configuration options for rockers, switches, latching positions and micro switches to meet safety-critical requirements
  • Available with spring return to centre position or with friction brake
  • Feel of the x and y axes can be adjusted separately for optimization on special applications
  • Special version with fully rotatable cobra knob available
  • Degree of protection up to IP65 (above the panel, depending on configuration)

Data sheet 891

Hand Joystick Series 890

Large heavy-duty joystick with stock grip handle of the highest quality with configurable sensors

  • Outstanding quality of mechanics and sensor technology for many years of reliable operation
  • Conductive plastic potentiometers or Hall sensors (both also available as redundant version) as ideal solution for your electronics
  • Wide range of configuration options for switches, latching positions, etc. to meet safety-critical requirements
  • Haptics and behavior of the x and y-axis can be adjusted separately for optimization for special application
  • Available with spring return to central position or with friction brake
  • Protection class IP65 (above the panel)

Data sheet 890

Hand Joystick TRY54

Cutting-edge, ergonomic hand grip for extreme applications

  • CAN Bus joystick (CAN SAE J1939-71 or CANOpen)
  • SIL 2 capable
  • Reliability through redundant Hall sensors
  • Withstands axial loads of more than 1700 N
  • Up to 10 million movement cycles
  • Low installation depth

Data sheet TRY54

Hand Joystick TRY50

Compact and robust hand-size joystick

  • Up to two pushbutton in handle
  • IP class 65
  • Optionally available with USB and CAN (J1939)

Data sheet TRY50

Hand Joystick TRY52

Multifunction handle: Compact and strong

  • 1 and 2 Axes
  • Up to 10 millions cycles under high loads
  • IP class up to 63
  • Multifunction handle for additional functions, e.g. Switches, Rockers, Deadman
  • Also available with USB- or CANbus-Interface

Data sheet TRY52

Hand Joystick TRY80

For heavy-duty applications

  • Different handle designs available
  • Optionally with push buttons and deadman trigger
  • Industrial-suited robust design
  • IP classes up to 63 (on request)
  • Several output options (analog, CAN J1939, CANopen, USB)

Data sheet TRY80

Hand Joystick TRY81

Customizable multifunctional joystick

  • Handle can be configured individually with pushbuttons
  • IP class up to 63

Data sheet TRY81

Desktop Joystick MACHIV

Highly customizable desktop housing

  • Several handle versions
  • Desktop housing with customizable number of pushbuttons
  • Optionally with USB interface

Data sheet MACHIV

Desktop Joystick MACHV

Desktop housing integrating 3 axes joystick and 10 pushbuttons

  • Desktop housing integrating 3 axes joystick and 10 pushbuttons
  • Ergonomic desktop housing
  • USB interface (HID 1.1 compliant)

Data sheet MACHV

Desktop Joystick Series RS Desktop

Compact and stylish USB desktop joystick

  • 3 axes with Hall sensors
  • Compact desktop housing with 6 pushbuttons
  • USB interface (HID 1.1 compliant)

Data sheet RS Desktop
